Heat Temperature Strips for Measuring Conveyor Tunnel Dryer Temperature

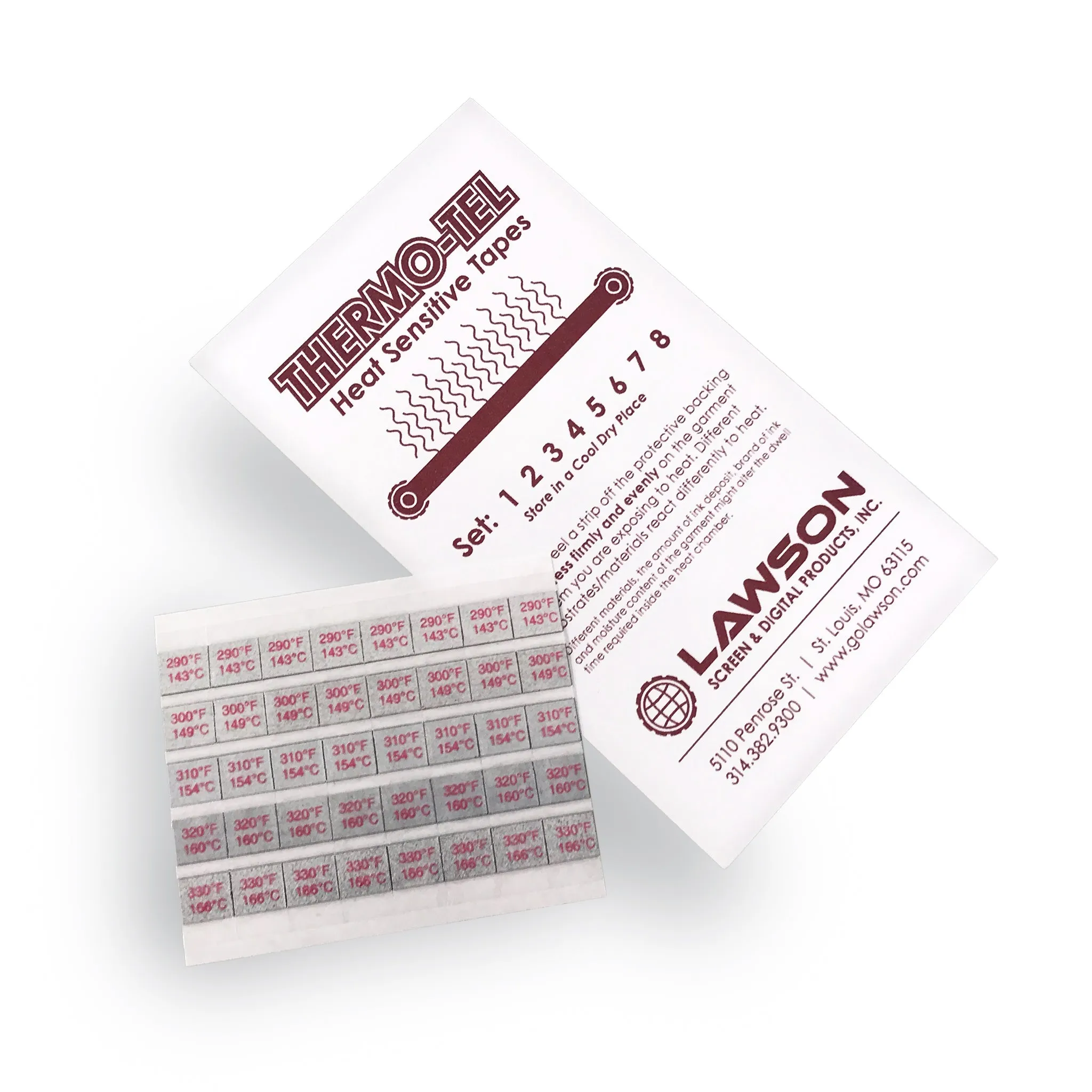

Thermo-Tel Heat Sensitive tapes are great for estimating dryer temperatures. Temperature ranges from 100° F to 500° F available in 8 different temperature ranges. Five pressure-sensitive strips to a set. Easy to use and inexpensive.
400-100-1-PK #1 (100°-130°F) Minimum order of 24.
400-100-2-PK #2 (140°-180°F)
400-100-3-PK #3 (190°-230°F)
400-100-4-PK #4 (240°-280°F)
400-100-5-PK #5 (290°-330°F) Most Popular
400-100-6-PK #6 (340°-380°F)
400-100-7-PK #7 (390°-435°F)
400-100-8-PK #8 (450°-500°F)
Follow these simple animated instructions:
- Step 1: Simply peel a strip off the protective backing.
- Step 2: Press Firmly to remove any air bubbles in the tape.
- Step 3: Send through your Lawson Dryer.
- Step 4: Inspect the Sticker after it has gone through the Dryer for results.
HOW TO USE THERMO-TEL TAPES
Each package contains eight strips with five different temperatures (i.e. #5 = 290°, 300°, 310°, 320° and 330° F). When exposed to heat, the strip will darken as it reaches that temperature. By looking at the strip, you can tell what temperature has been achieved.
Each dryer, each job, garment and shop is different. As a result, you will need to understand and adjust your dryer. Belt speed, heater element height and jet-air flow especially affects temperature. Always test in a situation that simulates real production. For example, apply the Thermo-Tel on the exact garment type you will be printing on (not a rag, belt or different color) and run the same number of garments/pieces through the heat chamber as you will be doing in production.
- To Use: Peel a strip off the protective backing and press firmly and evenly on the garment or item you are exposing to heat. Different substrates/materials react differently to heat. These different materials, along with factors such as: the amount of ink deposit, brand of ink and moisture content of the garment, etc., might alter the dwell time required inside the heat chamber.
